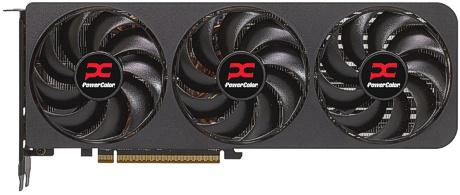

PowerColor AMD Radeon RX 9070 XT REAPER 16GB GDDR6 Graphics Card

PowerColor AMD Radeon RX 9070 XT REAPER 16GB GDDR6 Graphics Card
PowerColor Radeon RX 9070 Reaper 16GB GDDR6 Graphics Card
PowerColor Radeon RX 9070 XT REAPER 16GB GDDR6 Graphics Card, RDNA4, 4096 Streams, 2970MHz Boost
Manufacturers Code: RX9070XT 16G-A
EAN: 4713436175759

AMD Radeon RX 9070 XT REAPER
16GB GDDR6 Graphics Card From PowerColor



Relentless by Design: The Reaper Series

The PowerColor Reaper AMD Radeon RX 9070 XT 16GB GDDR6 is a sleek, high-performance graphics card designed for gamers who demand efficiency and reliability. Built on AMD's RDNA 4 architecture, it features 16GB of GDDR6 memory and PCIe 5.0 support for cutting-edge gaming performance. With a compact dual-slot design, the Reaper is ideal for small form factor (SFF) builds, offering excellent compatibility without compromising power. Its advanced cooling system includes Honeywell PTM7950 thermal pads and a triple-fan setup to ensure optimal thermal management during demanding sessions. Focused on straightforward functionality, the Reaper delivers exceptional performance with reference clock speeds and a minimalist design, making it the perfect choice for gamers seeking efficiency and value.

Master the Game with Reaper Series

The PowerColor Reaper Series is designed to deliver reliable, consistent performance for gamers. Featuring high-quality Japanese dual ball bearings and high-efficiency ring blade fans, its robust triple-fan design ensures optimal airflow and durability. The copper base provides direct contact with the GPU and VRAM, maximizing cooling efficiency during demanding gameplay. The Reaper Series is built for those who value enduring performance in every battle.

High Quality Japanese Dual Ball Bearings

Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.

Intelligent Fan Controller

Utilising temperature detection from a smart chip, fans will start running when the GPU reaches 60°C and shut down below 50°C. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of more accurate temperature monitoring

High-Efficiency Ring Blade Fans

Engineered for passionate gamers seeking the ultimate cooling experience, the Hellhound features an exclusive triple-ring blade design with up to 9 blades. This innovative design boosts fan speed while maintaining remarkably low noise levels, significantly enhancing air pressure and airflow to achieve exceptional cooling performance.

Direct-Contact Copper

A smooth copper base directly contacts the GPU to enhance exceptional heat transfer, and improves heat dissipation from the VRAMs to keep the card in the optimum cooling condition.

High-Thermal Conductivity Honeywell PTM7950

The phase-change properties of PTM7950 ensure that micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.

Features

Built on AMD's RDNA 4 architecture
16GB GDDR6 memory
256-bit memory interface
PCIe 5.0 x16 support
Game clock: 2400 MHz
Boost clock: 2970 MHz
Triple-fan cooling design
Compact dual-slot form factor
Honeywell PTM7950 thermal pads for improved cooling
4096 stream processors
1 x HDMI 2.1 and 3 x DisplayPort 2.1 connectors
Two 8-pin PCIe power connectors
Recommended system power: 750W
Dimensions: 289 x 111 x 41 mm (304 x 127 x 42 mm with bracket)
Support for AMD FreeSync technology
Compatible with AMD's FSR 4 upscaling technology

Specifications

Chipset     Radeon RX 9070 XT
Edition     Reaper AMD Radeon RX 9070 XT 16GB GDDR6
Manufacturing Process     4 nm
Microarchitecture     RDNA 4

Cores & Clocks
Streams     4096
Core Clock     2400 MHz
Boost Clock     2970 MHz

Video Memory (VRAM)
Memory Size     16GB
Memory Type     GDDR6
Memory Clock
Memory Speed (Effective with DDR)
Memory Bus     256 Bit
Memory Bandwidth
Memory Data Rate

Cooling
Cooling Solution     Tri Fan (3)
Fitted/Included Backplate     Yes

I/O & Connectivity
Interface     PCIe 5.0 (x16)
Connectivity

3 x DisplayPort 2.1a
1 x HDMI 2.1

Visuals
AMD CrossFire Support     Not Supported
AMD Freesync Support     Yes
HDR Support     Yes
Microsoft DirectX Support     12 API
Max. Concurrent Displays     4 Displays
Maximum Digital Resolution     7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution

Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)

Power & Thermals
Graphics Card Power Connectors     2 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU     750 W
Maximum GPU Temperature

Physical
Width     Dual Slot
Low Profile Support
Dimensions     289 x 111 x 41 mm
Package Type     Retail
Model Number     RX9070XT 16G-A
GTIN     4713436175759
