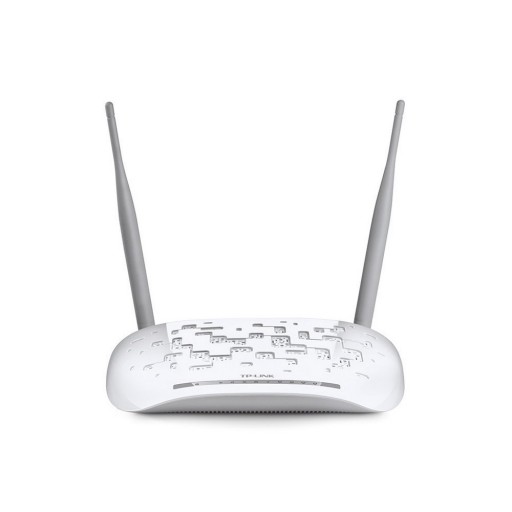

TP-Link 300Mbps Wireless N USB VDSL2 / ADSL Modem Router - TD-W9970

TP-Link 300Mbps Wireless N USB VDSL2 / ADSL Modem Router - TD-W9970
TP-LINK TD-W9970 N300 Wireless VDSL2/ADSL Modem Router (Interchangeable LAN/WAN Port - Compatible with Fiber/Cable service, One USB Port for Storage Sharing, Media/Print Server)
Manufacturers Code: TD-W9970
EAN: 6935364092542

•     Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services
•     Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL
•     Share files, media and printers with your friends or family using the multi-functional USB port

What This Product Does
TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.

USB Sharing Port - Easy Sharing
Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.

Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

Up to 100Mbps broadband speed
TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.

Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.

Specifications:

HARDWARE FEATURES
Interfaces:
4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port

Button:
1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch
External Power Supply 12VDC/1A

Dimensions (W X D X H) 7.7*5.1*1.4 in. (195×130×36mm)
IEEE Standards IEEE 802.3, 802.3u
VDSL2 Standards ITU-T G.993.2

ADSL Standards
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards  ITU-T G.992.5
Antenna Type  Omni directional, Fixed
Antenna Gain  2 x 5dBi

WIRELESS FEATURES
Wireless Standards  IEEE 802.11b, 802.11g, 802.11n
Frequency  2.400-2.4835GHz
Transmit Power <20dBm(EIRP)

Wireless Security
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering

SOFTWARE FEATURES
Management:
Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools

Quality of Service  WMM, Bandwidth Control (IP QoS)
Port Forwarding Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through  PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs


Advanced Features:
Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP

Security:
NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering

USB Sharing:
Storage Sharing
FTP Server
Media Server
Print Server

IGMP:
IGMP snooping V1/V2/V3
IGMP Multicast

IPSec VPN:
10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

IPv6:
IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6

OTHERS:

Certification  CE, FCC, RoHS
Package Contents
TD-W9970
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter

System Requirements  Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system

Environment:
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Box Contains:

TP Link Wireless Modem Router>br>Power Adapter
External Splitter
RJ11 Cable
RJ45 Cable
User Documentation/Media
