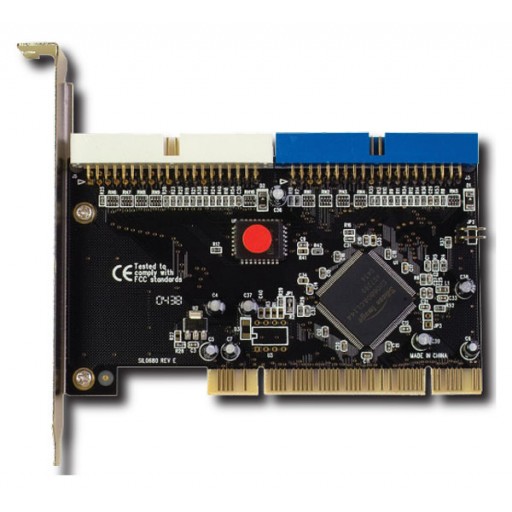

LogiLink 2 Port ATA-133 RAID/IDE Controller PCI Card - Retail

LogiLink 2 Port ATA-133 RAID/IDE Controller PCI Card - Retail

Raid is a method where two or more disks are used to store data. Data can be read simultaneously from more than one drive, providing bette performance. Usually used on servers.
These cards are also ideal for adding more IDE type devices, such as DVD writers if your motherboards IDE ports are all used.

Features:

Software RAID 0, 1 and 0+1 (Optional)
Automatic Performance Tuning for Each Device Attached
2-Internal Ultra ATA 133 Ports

General:

PCI 32-Bit 33MHz Interface Compliant with PCI Revision 2.2
Support PCI Bus-Master Access
Fully Plug & Play Compatible
Parallel ATA Interface
ATA/ATAPI-6, UDMA6 ATA/133 Compliant
Maximum Data Transfer Rate: 133MB/Sec
Automatic Performance Tuning for Each Device Attached
Fully Backwards Compatible with Ultra ATA/100, Ultra ATA/66, Ultra

ATA/33, EIDE/Fast ATA-2, IDE and ATAPI Devices:

2-Channels DE Interface Supporting 4-IDE Devices, Co-Exist with
On-Board IDE Interface
RAID Function (Optional)
Supports Software RAID 0 (Striped), RAID 1 (Mirror), and RAID 0+1
Supports Co-Exist RAID Set and Non-RAID HDD
Allows HDDs with Different Sizes to be Confi gured in a RAID Set
Adjustable Stripe Size for RAID 0 and 0+1

Supported Devices:

Hard Drives, ATAPI CDROM, DVD ROM, CD-R, CD-RW, LS-120, MO, Tape and ZIP Devices
