Gigabyte AMD B850M GAMING X Wi-Fi 6E mATX Motherboard

Gigabyte AMD B850M GAMING X Wi-Fi 6E mATX Motherboard

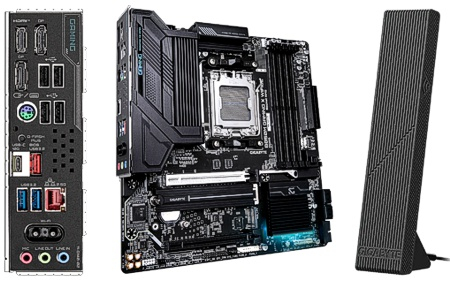

Gigabyte B850M GAMING X WIFI6E mATX Motherboard for AMD AM5 CPUs
Gigabyte B850 GAMING X Wi-Fi 6E, AMD B850, S AM5, DDR5, PCIe 5.0, 2 x M.2, 2.5GbE, Wi-Fi 6E, USB 10Gbps, AMD EXPO, mATX
Manufacturers Code: B850M GAMING X WIFI6E
EAN: 4719331866433



Gigabyte B850M GAMING X WIFI DDR5 PCIe 5.0
AMD Micro-ATX Motherboard



Level Up Your Setup

The Gigabyte B850M GAMING X Wi-Fi 6E is here to supercharge your gaming rig, packing insane power into a compact Micro ATX design. Assembled on the B850 chipset, this board is ready to take on AMD Ryzen 9000 Series Processors, able to deliver lightning-fast speeds and ultra-smooth multitasking, giving you the edge in every match. With Wi-Fi 6E, say goodbye to lag and hello to epic online play, while cutting-edge thermal tech keeps things ice-cold, even during your most intense gaming sessions. RGB Fusion 2.0 lets you light up your setup in style, while AI-driven performance boosts your system like a cheat code, bringing more power and reliability than ever.

B850 AMD Chipset
AM5 CPU Socket
DDR5 DIMM Max. 256GB (Dual Channel)
MicroATX Form Factor

Fully-Featured Motherboard



1 - Twin Digital VRM
Premium Chokes and Capacitors
6-Layer Copper PCB
Mid-Loss PCB

2 - AMD AM5 Socket
Supports 7000 Series Processors
Supports 8000G Series Processors
Supports 9000 Series Processors

3 - Power Connectors
8-pin CPU Power with Solid pin
24-pin ATX Power Connector

4 - DDR5 Memory
Overclocking support up to 8200 MT/s
4 x Dual Channel DIMMs

5 - PCIe 5.0/4.0 M.2 Slots
1 x Ultra Durable PCIe 5.0 M.2 Slots
1 x PCIe 4.0 M.2 Slot

6 - Fan Headers & Cooling
Smart Fan 6 Support
4 x PWM/DC Headers

7 - Full-length PCIe Slots
1 x Ultra Durable PCIe 5.0 x16
1 x PCIe 4.0 x16

8 - SATA Support
4 x SATA III (6Gb/s)

Snap Into Action with AORUS AI SNATCH

Smart and Safe Overclocking
AI SNATCH simplifies overclocking with a user-friendly interface that automatically calibrates performance settings. Built-in safeguards, such as over-temperature and over-current protections, keep your components secure while you gain extra speed. This approach lets you push your system confidently, enjoying enhanced performance without worry.

Enhanced AI Processing – Up to 8% Improvement
At the heart of AI SNATCH is improved AI performance, offering up to an 8% increase. This acceleration sharpens decision-making and speeds up data tasks, from language processing to reinforcement learning. The result is a system that responds more quickly and runs smoother throughout your daily computing tasks.

One-Click Acceleration
With a single click, your CPU and DDR5 memory performance can be boosted by up to 9%. The smart interface quickly adjusts key settings, allowing for faster app launches, improved multitasking, and overall snappier performance that enhances both gaming and work experiences.

Up to 9% Better Performance Per Watt
Improved power management under AI SNATCH leads to up to a 9% boost in CP/Per Watt performance. This refined control reduces energy consumption while maintaining high processing speeds, resulting in a cooler, more sustainable setup. Experience a system that delivers extra performance alongside reduced power usage for round-the-clock reliability.

All-Round Connectivity



The B850M GAMING X WIFI has all the connectivity you need, featuring a Q-Flash Button for effortless BIOS updates, a PS/2 Combo Port for legacy peripherals, and Triple Audio Jacks for clear, reliable sound. Dual DisplayPort 1.4 and HDMI 2.1 outputs ensure high-resolution visuals for multi-display setups, while Dual Antenna Ports and Bluetooth 5.3 support provide reliable wireless support.
USB Port for Illustration

Extensive USB Connections
Featuring a mix of standard and high-speed connections, this setup includes four USB 2.0 ports for basic peripherals, two USB 3.2 Gen1 Type-A ports for quicker transfers, and both a USB 3.2 Gen2 Type-A and Type-C port for modern devices and versatile connectivity.
RJ45 Port for Illustration

2.5 GbE LAN
Supercharge your gaming with 2.5GbE LAN, achieving lightning-fast speeds, ultra-low latency, and rock-solid performance to enhance your setup and stay ahead. Smooth online gameplay, faster downloads, and uninterrupted streams keep you in control at all times.
Antenna Icon for Illustration

Wi-Fi 6E Antenna
802.11ax is expanded further with a dedicated 6GHz band, reducing congestion and interference from older devices. This additional spectrum allows for wider channels, lower latency, and more consistent speeds in high-traffic environments.

Illuminate your PC with RGB Fusion



RGB FUSION 2.0
RGB Fusion 2.0 offers more personalisation options than ever, letting you customise your system’s lighting to match your vibe. With a refreshed app and complete RGB support, you can control every LED, adapting your rig's glow to suit any theme. It covers not just your main board but also works with Gigabyte graphics cards, monitors, keyboards, and cooling systems, allowing you to craft a synchronised light show across your devices. The vibrant hues and varied effects make your setup sparkle and shine, adding a burst of colour and flair to your gaming space.

RGB FUSION 2.0 SOFTWARE
With an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.

Gigabyte RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the Gigabyte RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colors and change speeds for different modes on the fly.

Specifications

Edition     GIGABYTE B850M GAMING X Wi-Fi 6E
Form Factor     MicroATX
CPU Socket     AM5
Chipset     AMD B850

RAM Memory Support
Memory Type     DDR5
Memory Channel     Dual (2)
Memory Type (ECC)     Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)     DDR5 - 8200(OC)
Max. Memory Capacity     256GB

Audio
Audio     7.1 Channel HD Audio

Graphics Support
Primary GPU Interface     PCIe 5.0 (x16)
NVIDIA SLI Support     N/A
AMD CrossFire Support     N/A
Integrated Graphics     Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors

DisplayPort 1.4
HDMI 2.1

Internal Connectivity
Expansion Slots

1 x M.2, 22-80/110, PCIe Gen4x4
1 x M.2, 22-80/110, PCIe Gen5x4
1 x PCIe 3.0 x16 (x4 Bandwidth)
1 x PCIe 5.0 x16
4 x SATA 6GB/s

SATA Support     SATA3
RAID Support via     Yes
Storage Mode Support

RAID 0
RAID 1
RAID 10
RAID 5

Internal I/O

1 x 24-pin (Power)
1 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Clear CMOS jumper
1 x CPU Fan Connector
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Front Panel Connector
1 x Reset Button
1 x RGB (RGBW) LED Strip Header
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.1 Gen1 Header
1 x USB 3.2 Gen2 Header

External Connectivity
Network Interface Type

802.11ax Wi-Fi 6E LAN
Wired 2.5 Gigabit LAN (10/100/1000/2500)

Network Chip/Modules     1 x 802.11ax WiFi 6E + BT5.3
Rear I/O Connectors

2 x Antenna Ports
3 x Audio I/O
2 x DisplayPort 1.4
1 x HDMI 2.1
1 x PS/2 Keyboard/Mouse Combo
1 x Q-Flash Plus Button
1 x RJ-45
4 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C

Additional Specifications
Water Cooled     No
Cooling     Passive Heatsinks
QPI Speed     N/A
Board Dimensions     244 x 244 mm
Model Number     B850M GAMING X WIFI6E
GTIN     4719331866433
