Corsair RMe Series 1000W 80+ Gold Full Modular Power Supply

Corsair RMe Series 1000W 80+ Gold Full Modular Power Supply
1000W Corsair RMe Series RM1000e, Fully Modular, 80PLUS Gold, Single Rail, 83.3A, 120mm Fan, ATX PSU
RMe Series RM1000e Fully Modular 80 Plus Gold Low-Noise ATX PSU
Manufacturers Code: CP-9020264-UK
EAN: 840006699866

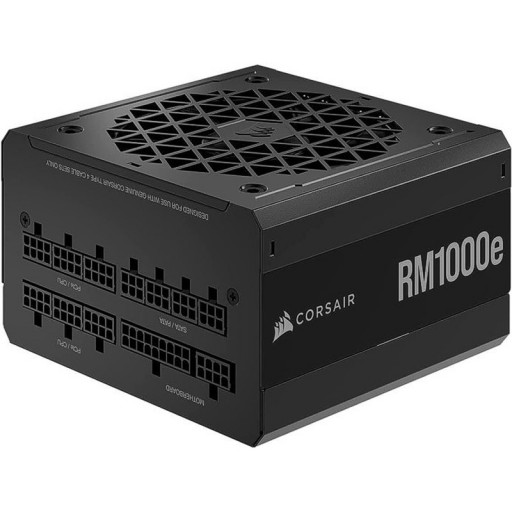

1000W RM1000e Fully Modular ATX Power Supply from Corsair



High Performance Low Noise Reliability

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies provide quiet, reliable power with 80 PLUS Gold efficiency to your PC. With dual 8-pin EPS12V cables and an array of PCIe 8-pin power connectors, RMe PSUs have the connections needed to power today's demanding PC hardware. Industrial-grade, 105°C-rated capacitors deliver superb electrical performance, backed by a seven-year warranty. Wake your computer faster and consume less power with support for the new Modern Standby sleep mode. Fully modular cables make PC builds easy, as you connect only the cables your system requires. With a 140mm-long casing that works with nearly any modern case, the CORSAIR RMe Series is steady power for your system.

1000W Power  :  80 PLUS Gold Efficiency Rating  :  ATX Form Factor  :  120mm Rifle Bearing Fan

Low Noise Even at Full Load



Keeps Quiet
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.

Zero RPM Fan Mode
For near-silent operation at lower loads.

Steady, Reliable Power Delivery

80 PLUS Gold-Certified
The RMe Series fully modular PSU provides steady power output at up to 90% efficiency, and is Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures. Resonant LLC topology with DC-to-DC conversion provides clean, consistent power and enables use of more energy-efficient sleep states.

Fully Modular Connectivity



Wide Compatibility

Dual 8-pin EPS12V connectors offer wide compatibility with modern graphics cards and motherboards, and 105°C-rated capacitors deliver steady, reliable power and dependable electrical performance. Also, the compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.

Box Contents

1x 24-pin ATX (24-pin) Connector
2x ATX 12V/EPS12V (4+4-pin) Connectors
6x PCIe (6+2) Connectors
7x SATA Connectors
4x PATA Connectors

Specifications

Form Factor     ATX 3.0
Edition     RM1000e
Wattage     1000 W
Energy Efficiency Certification     80 PLUS Gold
Max. Efficiency (at 230Vac)     92 %
Cooling     Fan
Fans     1 x 120mm
Internal +12V Rails     Single Rail
Rail 1 +12V     83.3 A
Rail 2 +12V     N/A
Rail 3 +12V     N/A
Rail 4 +12V     N/A
Rail 5 +12V     N/A
Rail 6 +12V     N/A
Max. Combined Output +12V     83.3 A
Modular     Yes
Modularity     Full Modular
SLI/CrossFire     No
EPS 12V     Yes
Motherboard Connector     24-pin
Connectors

2 x 4+4-pin ATX 12V
4 x 4-pin Molex
6 x 6+2-pin PCIe
7 x SATA

Dimensions     150 x 85 x 140 (WxHxD)
Package Type     Retail
Warranty     7 Year
Model Number     CP-9020264-UK
EAN: 840006699866
