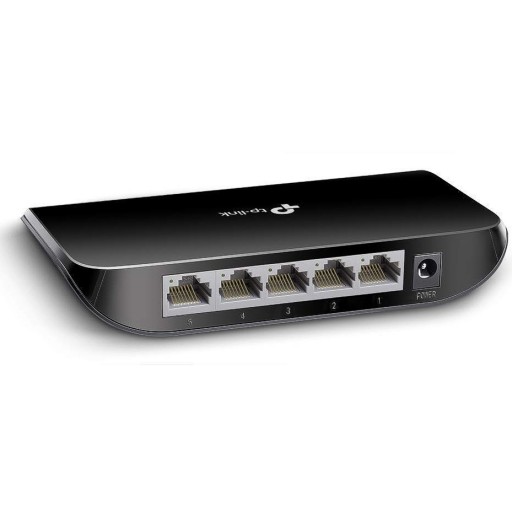

TP-Link TL-SG1005D 5-port Unmanaged GIGABIT Desktop Switch - Black

TP-Link TL-SG1005D 5-port Unmanaged GIGABIT Desktop Switch - Black
TP-LINK TL-SG1005D 5-Port Gigabit Ethernet 10/100/1000 Mbps Unmanaged Desktop Switch
TP-LINK TL-SG1005D 5-Ports Gigabit Ethernet Switch - TL-SG1005D
Manufacturers Code: TL-SG1005D
EAN: 6935364091804

5 Gigabit Ethernet ports, up to 10x faster than fast Ethernet for maximum performance, supports auto MDI/MDIX
Auto-negotiation adjusts for compatibility and optimal performance
Small and silent desktop network switch with fan-less design for quiet operation
Plug and play, no configuration required
Green Ethernet technology saves the power up to 85 percent
Comes with 3 years manufacturer's warranty

The TL-SG1005D Gigabit Desktop Switches provide you an easy way to upgrade your network to 1000Mbps network. Since all ports supports auto MDI/MDIX, there's no need to worry about the cable type to use.

Moreover, with the innovative energy-efficient technology, TL-SG1005D can save power consumption, making them an eco-friendly solution for your business network.

Gigabit Expansion Solution:

TL-SG1005D equips 5 10/100/1000Mbps ports, providing up to 10Gbps switching capacity
15KB Jumbo Frame improves performance of large data transfers
IEEE 802.3x flow control provides reliable data transfer

Highlight Performance

802.1p and DSCP QoS enables smooth traffic
Fanless design ensures quiet operation
Green technology reduces power consumption
Just plug and play, no configuration required
Auto MDI/MDIX eliminates the need for crossover cables
Auto-negotiation intelligently adjusts for compatibility and optimal performance

Specifications

Interface:

TL-SG1005D: 5 10/100/1000Mbps RJ45 Ports, Auto Negotiation, Auto MDI/MDIX
Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1p
Transmission Method : Store and Forward
Advanced Functions: Green Technology, 802.3x Flow Control, 802.1p/DSCP QoS
Max Power Consumption (220V/50Hz): TL-SG1005D: 2.41W
Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
Certification: FCC, CE, RoHs

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90%RH, non-condensing;
Storage Humidity: 5%~90%RH, non-condensing

Package Contents:

5 Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
