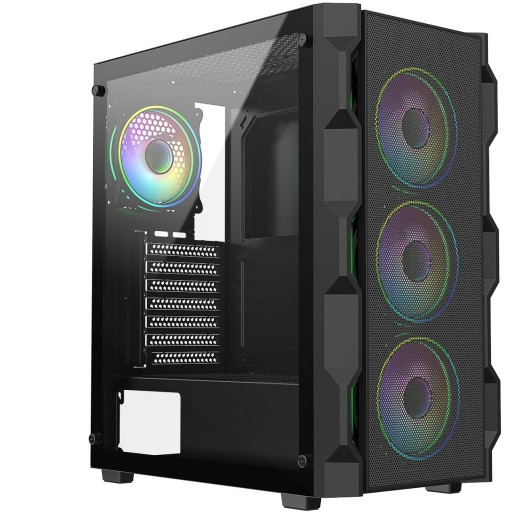

CiT Neo Black ATX Gaming Case with Mesh Front and Tempered Glass Side 6-Port PWM Hub and 4 x CiT Tornado Dual-Ring Infinity Fans

CiT Neo Black ATX Gaming Case with Mesh Front and Tempered Glass Side 6-Port PWM Hub and 4 x CiT Tornado Dual-Ring Infinity Fans
CiT Neo, Black, Mid Tower Chassis w/ Tempered Glass Window, 4x 120mm ARGB Fans, USB 3.0, ATX, mATX, mITX
CiT Neo Black Mid Tower Tempered Glass PC Gaming Case
Manufacturers Code: CIT-NEO-B
EAN: 5055492414397



CiT Neo Black ATX Gaming Case
with Tempered Glass, 4 x Dual-Ring Infinity Fans



The CiT Neo is a serious, good-looking bit of kit. An ATX chassis designed with both style and purpose, it hits all the boxes for a powerful gaming rig without breaking the bank.

Sporting a mesh front panel, the CiT Neo allows for large volumes of air to pass through unrestricted. Enhancing the airflow even further it features 4 CiT Tornado Fans to cool even the most demanding rigs. The air intake can be maximised even further with 120mm/240mm/280mm/360mm AIO solutions & with the possibility to mount additional fans at the top or PSU shroud.

Making the Neo stand out from the pack is the rugged, angular front design - the hard angled edges around the front add style on top of the sheer functionality the mesh and fans already provide.

Helping to make the Neo stand out even further, 4 CiT Tornado Infinity 120mm ARGB Dual-Ring Black Fans add a touch of infinity, the circular-shaped infinity mirrors at the centre of the fans create a mesmerising LED lighting display with their multi-layer effect. They not only look fantastic but also ensure all components are catered for when it comes to keeping temperatures balanced & conditions optimised for a peak performance.

Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections & inside is a PWM ARGB hub with LED lighting controls with access to approximately 365 LED modes or 16.8 million colours using a compatible addressable RGB MB.

Measuring 44.7cm in height, the all-black interior & full PSU shroud add to the sleek and unobtrusive look. It can fit a graphics card up to 34cm & behind the MB & PSU shroud up to 4 x 2.5” / 2 x 3.5” drives. Top & bottom removable dust filters help keep your rig clean, with room in the shroud for an ATX PSU up to 200mm with cables easily hidden from view.

If you want an impressive looking, well-cooled and versatile Gaming Rig, look no further than the CiT Neo, carrying some serious power, creating a stunning look and functional Gaming PC.

Key Features

Mesh ATX Gaming Case
The CiT Neo is a bold and sophisticated gaming case finished in all black with a mesh front panel which allows air to flow into the case easily without obstruction combining a super airflow performance with dust filtration, making this stylish chassis ideal for any gaming room.

Four CiT Tornado Infinity 120mm ARGB Dual-Ring Black Fans Bundled
The CiT Neo comes installed with 4 x CiT Tornado Infinity 120mm ARGB Dual-Ring Black Fans - As a PWM fan (Pulse-Width Modulation) its rotation speed can be user controlled by connecting the fan to a compatible motherboard or fan controller. As a result users can choose whether they want the fan to run quietly or have enhanced airflow. With Dual-Ring and the circular-shaped, multi-layer Infinity Mirror Design, the Infinity fans add a mesmerising LED lighting display to the Neo.

Fan Controller Included
A PWM hub is included inside the Neo which allows you to add up to 6 case fans and is powered directly from your power supply via SATA. You can access it using the LED button and it's connected to the Motherboard using a single cable - you can setup without any additional cables.

PWM Fan Control
The hub can be connected to the CPU fan interface on your chosen Motherboard to access temperature readings. An increased CPU temperature increases the fan speed automatically and swiftly cools the system down. Conversely when the CPU temperature decreases the fan automatically slows reducing the overall noise.

Motherboard Software
The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.

Tempered Glass Panel
The solid tempered glass side panel offers an excellent view of the interior specifically of the Motherboard & Graphics Card.

Available In Two Colours
The CiT Neo is available in two colours, black or white. This model of the Neo is the black, the perfect backdrop for high-end hardware and ARGB lighting.

PSU Shroud
To keep the interior looking neat and tidy the Neo has a dedicated PSU Shroud that is made with solid steel panelling that perfectly covers the cables, showcases the PSU specs and contains a hard drive mount. The hard drive cage holds up to 2 x 2.5” SSDs and/or 2 x 3.5” HDDs (2 x 2.5" bays share the 2 x 3.5" bays, and 2 x Extra 2.5” SSDs slots are also available). This shroud can hold power supplies up to 200mm long.

ATX Housing
ATX, Micro-ATX and Mini-ITX Motherboards are compatible and graphics cards up to 340mm in length and CPU coolers up to 170mm in height are supported - there is adequate space for mainstream hardware to build a high-powered PC Gaming case.

Specifications

Chassis Dimensions (Excluding Fascia / Panels):    (W) 218 x (H) 435 x (D) 351mm
Water Cooling Support:
Front Supported Radiator(s):    120mm or 240mm - 360mm is supported up to 395mm in length dependant on design
Known Supported 360mm Front Radiators::    CiT Pro Glacier Watercooler 360mm ARGB Infinity
Top Supported Radiator(s):    120mm, 240mm or 280mm
Rear Supported Radiator(s):    120mm
Fan Controller Support:
Fan Controller Included:    Yes
Fan Controller Power Via:    SATA
LED Controller:    Yes
Fan Power Connector:    4pin PWM
LED Power Connector:    3pin Aura
Fan Control Via:    LED Button / MB Sync
Supported Qty Of Fans (Max.):    6
Supported Qty Of LEDs (Max.):    6
Additional Chassis Specifications:
PSU Max. Length:    200mm (If HDD tray Moved towards the front)

Case Specifications

Form Factor:    Midi Tower
Motherboard Support:    ATX, Micro ATX, Mini ITX
PSU Support:    Standard ATX
PSU Location:    Bottom
Gaming Case:    Yes
Water Cooling:    Water Cooling Ready!
Supported Radiator Size: 240mm
Supported Radiator Positions: Front, Top
Body Material:    0.64mm
Front Bezel Material:    ABS & Mesh
Side Panel:    Tempered Glass
Internal Cable Management Depth:    20mm
External Bays:
Internal Bays:    2 x 3.5” Internal
4 x 2.5” Internal
Drive Bay Notes:    2 x 2.5" share 2 x 3.5"
Expansion Slots:    7 x Full Size
Cooling Front:    Space For 3 x 120mm Fans (3 x CiT Tornado Dual-Ring Infinity Fans Included)
Cooling Top:    Space For 2 x 120mm or 2 x 140mm Fans
Cooling Rear:    Space For 1 x 120mm Fan (1 x CiT Tornado Dual-Ring Infinity Fan Included)
Cooling Side:    None
Cooling Bottom:    Space For 2 x 120mm Fans (On PSU Shroud)
Fan Controllers:    1 Fan Controllers, controlling up to
6 fans in total
IO Ports:    1 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone
GPU Max Length:    340mm
CPU Cooler Maximum Height:    170mm
Front Bezel Colour:    Black
Body Colour:    Black
System Cabinet Features:
PSU Included:    No

General Specifications

Manufacturer Part Number:    CIT-NEO-B
EAN Number:    5055492414397
Has Mains Plug:    No
Colour:    Black
What's In The Box:    Case
Accessories
Unit (Product) Dimensions (mm):    225mm x 447mm x 386mm (W x H x D)
Packaging Dimensions (mm):    273mm x 455mm x 493mm (W x H x D)
Net Weight (KGs):    4.6 KGs
Gross Weight (KGs):    5.5 KGs
