CiT Pro Diamond XR Black Mid-Tower Gaming Case with 4mm Tempered Glass Panels and 7 x CiT Celsius Dual-Ring Infinity Fans

CiT Pro Diamond XR Black Mid-Tower Gaming Case with 4mm Tempered Glass Panels and 7 x CiT Celsius Dual-Ring Infinity Fans
CiT Pro Diamond XR Mid-Tower Black Gaming Case Bundle With 7 x Dual Ring ARGB Fans Included
Manufacturers Code: CIT-P-XR-DIA-B-7
EAN: 5055492414496

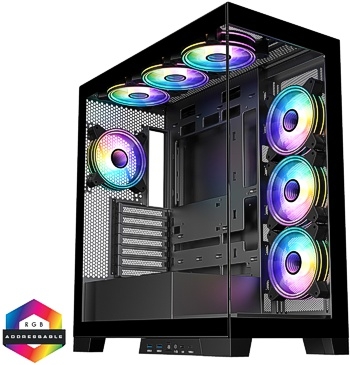

CiT Pro Diamond XR Mid-Tower Black Gaming Case
4mm Tempered Glass Panels
7 x CiT ARGB Celsius Dual-Ring Infinity Fans Included



If you want a sharp-looking, cool-running decent-sized Gaming Rig then look no further than the CiT Pro Diamond XR. Combining the smart, sharp aesthetics of the Tempered Glass Front and Side Panels to showcase your build with the striking and extremely functional full-on Hex-Mesh Design, you can literally get the best of both worlds!

The Diamond XRs open design gives you a multitude of options to match your building desire. Motherboard-mounted, top and rear mesh give you multiple options for Water Cooling, with support for up to a 360mm Radiator on the MB or top and a 120mm Radiator on the rear, with fan mountings for 120mm or 140mm fans in all locations.

This fluid design gives the Diamond XR the ultimate cooling capability that can be tailored to your hardware. With an additional cooling option on the PSU Shroud for a 120mm or 140mm fan on top, you can confidently build the highest spec PC knowing that your temperatures are taken care of.

The 4mm-thick Tempered Glass Front & Side Panels allow you to fully display your pride and joy build. With 27mm of cable management depth and multiple pass-throughs, a neat finish is easy to accomplish. Graphics Card support for up to 435mm and CPU Cooler support of up to 180mm allows plenty of room for the latest cards and coolers.

The Diamond XR comes in multiple configurations - this version is the 7-Fan that comes bundled with 7 x CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans. There are also the 4-Fan version and the blank canvas version, which leaves it open for you to fit the fans you want where you want.

Key Features

Showcase Your Build
Change the look and feel of your Diamond XR Pro with the removable front corner bar. This comes pre-installed but is easily and swiftly removed for a full-opened design. The edge-to-edge tempered glass panels offering an unobstructed view of your gaming hardware letting you construct a gaming PC that looks good from every angle.

Seven CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans Bundled
This version of the CiT Pro Diamond XR comes bundled with 7 x CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans - As a PWM fan (Pulse-Width Modulation) its rotation speed can be user controlled by connecting the fan to a compatible motherboard or fan controller. As a result users can choose whether they want the fan to run quietly or have enhanced airflow. With Dual-Ring and the circular-shaped, multi-layer Infinity Mirror Design, the Infinity fans add a mesmerising LED lighting display to the Pro Diamond. Please note the fans are included inside the box only and will need to be installed.

Best of Both Worlds
Combining the smart, sharp aesthetics of the 4mm Tempered Glass Front and Side Panels to showcase your build with the striking and extremely functional full-on Hex-Mesh Design, you can literally get the best of both worlds!

Diamond XRs Open Design
The Diamond XR gives you a multitude of options to match your building desire. Motherboard-mounted, top and rear mesh give you multiple options for Water Cooling, with support for up to a 360mm Radiator on the MB or top and a 120mm Radiator on the rear, with fan mountings for 120mm or 140mm fans in all locations.

Ultimate Cooling Capability
This fluid design gives the Diamond XR the ultimate cooling capability that can be tailored to your hardware. With an additional cooling option on the PSU Shroud for a 120mm or 140mm fan on top, you can confidently build the highest spec PC knowing that your temperatures are taken care of.

Uniquely Positioned Fast I/O
Sporting the latest USB3.1 Type-C Port, 2 x USB3.0 and HD Audio Ports, the Diamond XR has these positioned on the front of the Tempered Glass Window side, making them especially handy for desktop gaming setups.

Stunning, Neat Building a Breeze
The 4mm-thick Tempered Glass Front & Side Panels allow you to fully display your pride and joy build. With 27mm of cable management depth and multiple pass-throughs, a neat finish is easy to accomplish. Graphics Card support for up to 435mm and CPU Cooler support of up to 180mm allows plenty of room for the latest cards and coolers.

Easy Building
The Diamond XR comes with top-quality side panels that can be removed easily with a moderate pull, meaning they are secure but the internals can very easily be accessed by hand without tools for a smooth building and upgrading experience.

Specifications

Chassis Dimensions (Excluding Fascia / Panels):    (W) 234 x (H) 480 x (D) 450mm
Water Cooling Support:
Motherboard Supported Radiator(s):    120mm/240mm/280mm/360mm
Top Supported Radiator(s):    120mm/240mm/280mm/360mm
Rear Supported Radiator(s):    120mm
GPU Max Length:    430mm (with no water cooler on motherboard ) / 271mm (water cooler installed on motherboard)
PSU Max. Length:    270mm
Packaging Type:    EPE Foam and Cardboard
Packaging Thickness:    25.25mm
CiT Celsius ARGB Dual-Ring Infinity Fan Specification:
Dimensions:    120 x 120 x 25mm
Fan Frame Colour:    Black
Fan Blades / Colour:    9 / Semi-Transparent White
LED Qty / Type:    21 / ARGB
Bearing Type:    Hydraulic Bearing
Fan Speed:    PWM 800 - 1500 RPM
Max. Air Flow:    30.46 CFM
Max. Static Air Pressure:    0.99mm-H2O
Noise Level (Max.):    15.98 dBA
Cable Length:    550mm
Accessories:    Screws
Connectors:    SATA, 4pin Male Fan connector, 4pin female fan connector (passthrough), 3pin male AURA 3pin female AURA (passthrough)
Rated Voltage:    12V
Rated Current (Max.):    0.1A
Rated Input Power:    1.2W
Test Voltage:    12V
Start Voltage:    3.5V
M.T.B.F:    30,000 Hours

Case Specifications

Form Factor:    Midi Tower
Motherboard Support:    ATX, Micro ATX, Mini ITX
PSU Support:    Standard ATX
PSU Location:    Bottom
Gaming Case:    Yes
Water Cooling:    Water Cooling Ready!
Supported Radiator Size: 360mm
Supported Radiator Positions: Front, Top
Body Material:    1.02mmSPCC
Front Bezel Material:    4mm Tempered Glass
Side Panel:    4mm Tempered Glass
Internal Cable Management Depth:    27mm
External Bays:
Internal Bays:    2 x 3.5” Internal
1 x 2.5” Internal
Drive Bay Notes:
Expansion Slots:    7 x Full Size
Cooling Front:    None
Cooling Top:    Space for 3 x 120mm or 2 x 140mm (3 x Bundled to Fit)
Cooling Rear:    Space for 1 x 120mm or 1 x 140mm (Bundled to Fit)
Cooling Side:    Space for 3 x 120mm or 3 x 140mm (On M/B Cover - 3 x Bundled to Fit)
Cooling Bottom:    Space for 1 x 120mm or 1 x 140mm (Not Included)
IO Ports:    1 x USB 3.1 Type C
2 x USB 3.0
1 x HD Audio
1 x Microphone
GPU Max Length:    435mm
CPU Cooler Maximum Height:    180mm
Front Bezel Colour:    Black
Body Colour:    Black
System Cabinet Features:
PSU Included:    No

General Specifications

Manufacturer Part Number:    CIT-P-XR-DIA-B-7
EAN Number:    5055492414496
Has Mains Plug:    No
Colour:    Black
What's In The Box:
Case
Accessory Pack
Manual
7 x CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans
Unit (Product) Dimensions (mm):    234mm x 504mm x 456mm (W x H x D)
Packaging Dimensions (mm):    332mm x 550mm x 587mm (W x H x D)
